Madrid/Malaga
Wooden/Steel Parasol with two sidearms
Frame: of first qualitywood treated with friendly water ointment. Very resistant to uv sunrays and umidity,equipped with a crankhandle pulley system for an easy opening and closing. All metallic parts are of antricitecolour with epoxypowder coating, all screws are of steinless steel

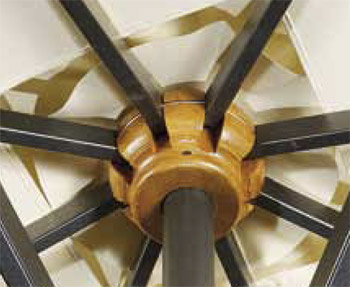

Pole section 142×142 mmof wood – it is possible to get of steel at request – Arm section 92×92 mm of metall – Ribs section profile 20×40 mm of wood with brass finishing and ribs joint with cotton protection, (ribs section profile of 18×36 for the parasol size 3×3)
All ribs are changeable
Cover: 100% acrylic 350 grams by square meter,natural colour ecruantimould treated, with wind chemney, attention the volant version delivered is straight, at request and with overcharge it is possible to receive “wave or square angle” or totally without volant, joining textile between the two covers is included at request cover of pvc, unit prices at request
Coloured: at request we can offer coloured covers with extra
Cover: overcharge
Packing: each parasol in single nylon sheath and strong carton box
Attention!! Before closing the parasol make sure the cover is dry in order to preventmold forming.
Additional charge for colored acrylic + 5%.
Pole section 142×142 mm. Wooden interchangeable ribs section 20×40 mm, in 3,00×3,00 mt size ribs section 18×36 mm.
Galvanized steel pole section 150×150 mm. Interchangeable aluminum ribs with juction section 20×35 mm.
4,50×4,50 size mt is only available in painted steel and aluminum ribs section 20×35 mm.
| MADRID/MALAGA | Item | Size | Height | Weight kg. | Volume |
|---|---|---|---|---|---|
 |
0335 | 3,00 x 3,00 | 3,20 | 150 | 1,300 |
| 0338 | 3,50 x 3,50 | 3,50 | 165 | 1,300 | |
| 0340 | 4,00 x 4,00 | 3,50 | 170 | 1,300 | |
| 0341 | 4,50 x 4,50(*) | 3,50 | 170 | 1,300 | |
 |
0342 | 3,00 x 4,00 | 3,50 | 165 | 1,300 |
* Size avaiable in painted steel and aliminum ribs section 20 x 35 mm.
N.B. for the size 4,50 x 4,50 there is this base:
| LATERAL | Size | A (cm) | B (cm) | C (cm) | Dim. reali | N. contrappesi |
|---|---|---|---|---|---|---|
 |
600 x 250 | 220 | 195 | 310 | 650×250 | 4 |
| 600 x 300 | 265 | 240 | 320 | 620×300 | 4 | |
| 600 x 400 | 277 | 252 | 340 | 620×400 | 4 | |
| 700 x 350 | 250 | 225 | 360 | 720×350 | 4 | |
 |
800 x 300 | 277 | 252 | 340 | 830×300 | 4 |
| 800 x 400 | 280 | 255 | 370 | 820×400 | 8 | |
| 900 x 450 | 305 | 280 | 410 | 928×450 | 8 |
| CENTRAL | Size | A (cm) | B (cm) | C (cm) | Real dim. | N. counterweights |
|---|---|---|---|---|---|---|
|
500 x 250 | 250 | 230 | 330 | 520×250 | 4 |
| 600 x 300 | 258 | 232 | 340 | 620×300 | 4 | |
| 600 x 400 | 280 | 255 | 355 | 620×400 | 8 | |
| 700 x 350 | 280 | 255 | 355 | 720×350 | 8 | |
 |
800 x 300 | 280 | 255 | 355 | 830×300 | 8 |
| 800 x 400 | 280 | 255 | 355 | 820×400 | 8 | |
| 900 x 450 | 290 | 265 | 407 | 928×450 | 12 |
